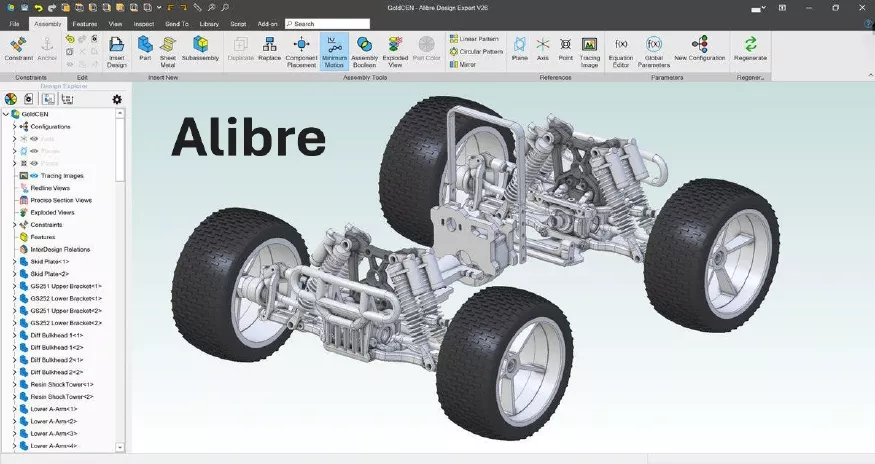

Alibre positions itself as an essential tool in the field of Computer-Aided Design (CAD), offering robust solutions for parametric modeling and technical data interoperability. This powerful software enables the creation of precise 3D models and detailed 2D drawings, and is highly regarded by engineers, designers, and manufacturers globally due to its versatility and excellent compatibility with other CAD systems.
File Formats and Interoperability
CAD data interoperability, defined as the ability of 3D software to exchange data seamlessly between different systems, is a fundamental pillar of modern technical collaboration. Alibre excels in this area by supporting a wide range of standardized neutral formats:
- Standard exchange formats: .STEP, .IGES, .SAT, Parasolid (.x_t, .x_b, .xmt_txt)
- Technical drawing formats: .DWG, .DXF, .SVG
- Manufacturing and 3D printing formats: .STL, .OBJ
- Visualization and sharing formats: .JT, .3D PDF
This extensive compatibility allows users to efficiently transfer models and drawings between various CAD applications, facilitating collaboration with partners, clients, and suppliers using other software solutions.
Native Alibre File Extensions
Alibre uses specific file extensions for different types of data, ensuring structured organization of design projects:
- .AD_PRT: 3D parametric part files
- .AD_SMP: Specialized sheet metal part files
- .AD_ASM: Complex assembly files
- .AD_DRW: 2D technical drawing files
- .AD_BOM: Detailed bill of materials files
- .AD_PKG: Alibre Design single-file containers (for easy sharing)
- .AD_GLP: Global configuration files for user preferences
- .AD_PCF: Function catalog files for custom libraries
Compatibility and Backward Compatibility
Recent versions of Alibre Design maintain compatibility with older native file formats, allowing access to models created with previous software versions. However, it's important to note that backward compatibility is not guaranteed; files created with newer versions are generally not readable by older versions of the software. This technical limitation is common to most CAD software and requires appropriate planning for teams working with different versions.
Advanced Interoperability and Collaboration
In an industrial environment where collaboration is essential, Alibre stands out with its advanced CAD interoperability capabilities. The software can import and export native files or convert data from various common CAD systems, including:
- CATIA V5
- Pro/ENGINEER or Creo
- SolidWorks
- Siemens NX
- Autodesk Inventor
- Rhinoceros (Rhino)
This extended interoperability facilitates collaboration in multi-CAD environments, allowing engineering teams to work efficiently despite using different design tools. Users can thus integrate Alibre into existing workflows without compromising data quality or model accuracy.
Solution for Creating Immersive and Collaborative Experiences from Alibre Models
CAD Interop distributes a comprehensive range of complementary software solutions to maximize interoperability and productivity with Alibre files, of which SimLab Composer is a key element.
SimLab Composer for Alibre
SimLab Composer offers a free integration plugin for Alibre, creating an active link between the two software. This plugin allows:
- Automatic synchronization of Alibre models in SimLab Composer
- Rapid creation of virtual reality (VR) experiences from Alibre designs
- Photorealistic rendering of models with a progressive rendering engine
- Generation of interactive 3D PDF files for easy sharing
- Application of textures and materials for realistic rendering
- Simulation of complex mechanisms
Advanced Features of SimLab Composer
In addition to integration with Alibre, SimLab Composer offers:
- Import of various CAD formats
- 3D animation tools
- Creation of interactive catalogs
- Task automation without programming
- Design of interactive quizzes for training
This solution allows Alibre users to significantly extend their visualization, simulation, and collaboration capabilities while maintaining an integrated and efficient workflow.
Alibre Interoperability Tips
Alibre's technical interoperability is accompanied by best practices and lesser-known tips to optimize workflows. These recommendations, derived from user experience and technical forums, allow full utilization of the software's file exchange capabilities.
Optimization of Format Conversions
For exports to .SAT, a common scale factor issue (division by 10) occurs when importing into AutoCAD. The solution is to manually edit the SAT file via a text editor by modifying the 'units per meter' value before reimporting.
When generating .DXF files for plasma cutting, maintaining a 1:1 scale in the drawing view preserves dimensional integrity.
For .STL exports intended for 3D printing, reducing the mesh resolution in the export parameters avoids oversized files (6 GB) and excessive processing times.
Management of Complex Imports
Importing SolidWorks files (.sldprt) requires the presence of all referenced components in the same directory. A tip is to use lightweight mode for assemblies exceeding 1,000 parts, reducing memory load by 40%.
For Rhino models (.3dm), activating the "Merge surfaces" option during import avoids topology errors.
Advanced Automation
The integrated Python script editor allows automation of recurring conversions. A community script allows converting .STL to .STEP in one operation, bypassing the limitations of direct mesh import.
For export batches, setting up predefined profiles with geometric tolerance options (0.001 mm) and removal of empty entities accelerates processing by 70%.
Resolution of Common Problems
In case of corrupted files, Alibre's automatic repair function analyzes defective segments while preserving assembly references.
For version incompatibilities, systematically exporting in STEP AP242 preserves technical metadata during exchanges with obsolete systems.
A recurring problem with Parasolid files (.x_t) is resolved by forcing the binary format (.x_b) for complex assemblies.
Multi-CAD Collaboration
Using the 3D PDF format including PMI (Product Manufacturing Information) allows design review without a CAD license.
For cloud collaborations, integration with Autodesk Drive synchronizes external references while keeping track of modifications.
A little-known tip is to export bills of materials (.AD_BOM) in .CSX for direct integration into ERPs.
Good Archiving Practices
Favoring STEP AP242 with ZIP compression for long-term archiving ensures readability for 15 years according to ISO 10303 standards.
Systematically adding metadata (author, version, units) in the .AD_PKG file properties facilitates traceability.
For sensitive projects, double exporting in JT (visualization) and STEP (exact geometry) covers all reuse needs.
